3.3.11: Cross Section Matcher

Previous3.3.10: Cross Section SelectorNext3.3.12: Generate Cross Section Table

Last updated 4 years ago

Was this helpful?

Use the “Cross Section Matcher”-component in case you want to find the first profile from a given list that provides equal or higher resistance compared to a given custom profile (see fig. 3.3.11.1). The “CSMatch”-component takes a cross section and a list of cross sections as input. Traversing the list starting from the first element it proceeds until an appropriate profile is found which is returned as the result.

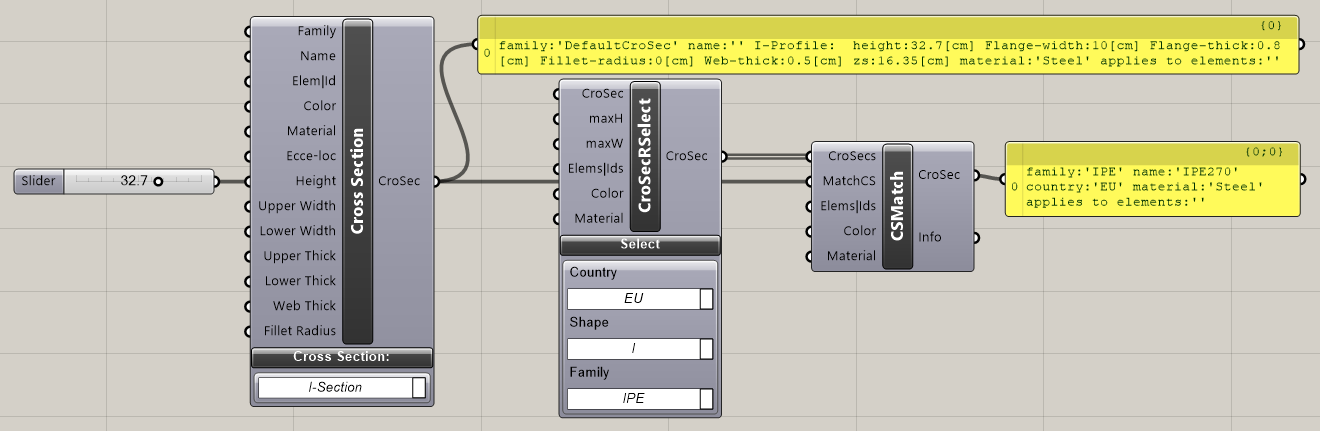

Fig. 3.3.11.1: The “Cross Section Matcher”-component returning a standard profile for a custom profile
