3.6.11: ShellView

Previous3.6.10: Resultant Section ForcesNext3.6.12: Line Results on Shells

Last updated 4 years ago

Was this helpful?

The “ShellView”-component works like the “BeamView”-component (see section and controls the display of shell results. Fig. 3.6.11.1 shows the resultant displacement of a shell.

Shell cross sections may consist of several layers (see section ). The layer with index “0” spans the whole cross section height by default, the other layers can be used to e.g. specify reinforcement layers. With the “LayerInd”-input, which defaults to “0”, one can specify the cross section layer to be displayed. In order to set the location inside a layer one has to specify a fiber: “1” corresponds to the upper boundary, “−1” to the lower boundary of a layer. The local z-axis points to the upper boundary.

Since the shell layers may have arbitrary orientations, it is often useful to display their local coordinate systems. This can be done with the “Local layer axes”-radio button under the “Display Scales”-submenu. The slider there allows to adapt the size of the coordinate system arrows.

Under the submenu “Render Settings” one can choose from the following rendering options which always refer to the currently set layer:

"Cross section"

Shows the upper and lower surface of the current layer and adds them to the output at the “Mesh”-output plug.

"Displacement"

Colors the shell according to the resultant displacement.

"Utilization"

Renders the material utilization. The utilization is calculated as the ratio between the material strength and the maximum Van Mises stress. A negative sign results if the negative value of the second principal stress is larger than the first principal stress. The output comprises two meshes symbolizing the utilization values on the top and bottom layer. The Van Mises Yield criterion is not applicable to brittle materials like concrete.

"Princ. Stress 1"

Visualizes the resultant value of the first principal stress in the current fiber of the current layer. The fiber can be set with the “Position of results” slider (see below).

"Princ. Stress 2"

Displays the resultant value of the second principal stress in the current fiber.

"Van Mises Stress"

Renders the Van Mises Stress in the current layer and position.

"Position of results"

Sets the position within the current shell layer where results are calculated. A value of 1 corresponds to the upper, −1 to the lower boundary of the current layer.

"Princ. Stress 1-2"

Enables or disables and scales the vector display of principal stresses in the current fiber of the current layer. Use the “Result Threshold” sliders in the “Display Scales”-menu of the “ModelView”-component to thin them out if necessary.

3.6.7
3.3.2

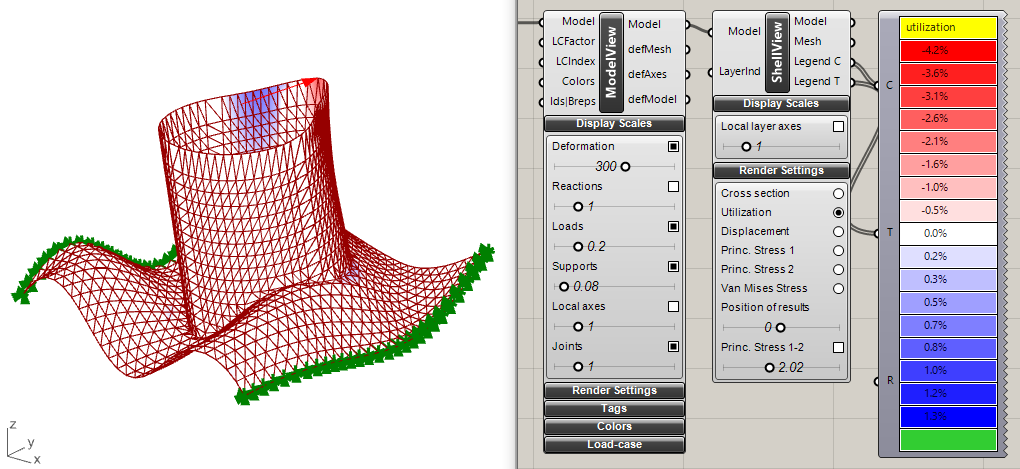

Fig. 3.6.11.1: Utilization on a deformed shell
